Mold Center

Browse our mold product series

263 total, page 1/5

Mold Name

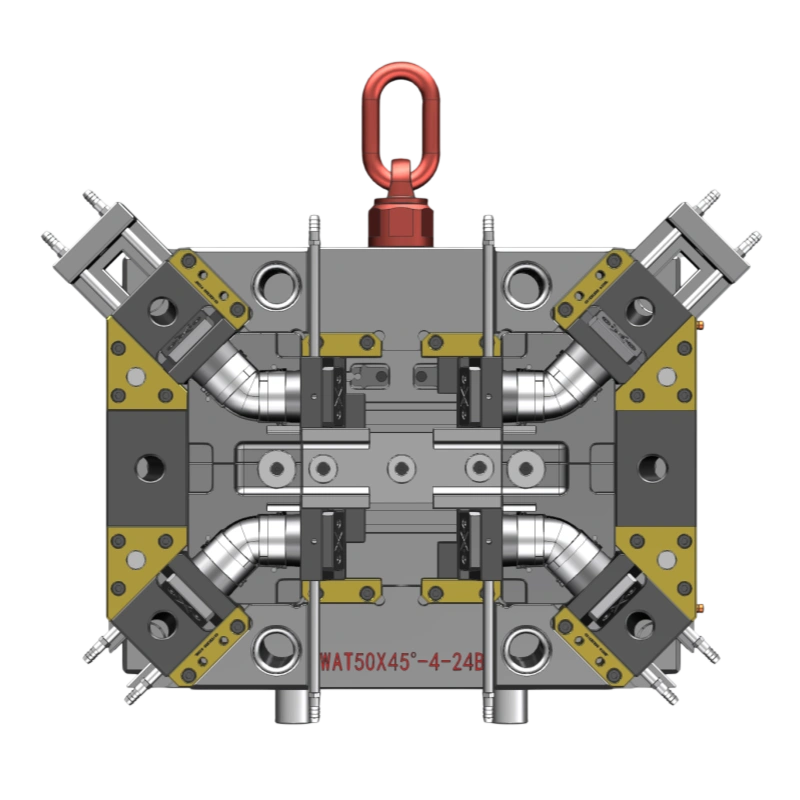

New Tech PVC 50mm 45° Elbow Oil Heating Conduction Hot Runner Pipe Fitting mould (4 Cavities)

GM012

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	700KG	570mmX570mm	250T	140000	WAT50-45-4-B

Mold Name

New Tech PVC 110mm 90° Elbow Oil Heating Conduction Hot Runner Pipe Fitting mould (2 Cavities)

GM013

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	1500KG	730mmX730mm	360T	160000	WAT110-90-2

Mold Name

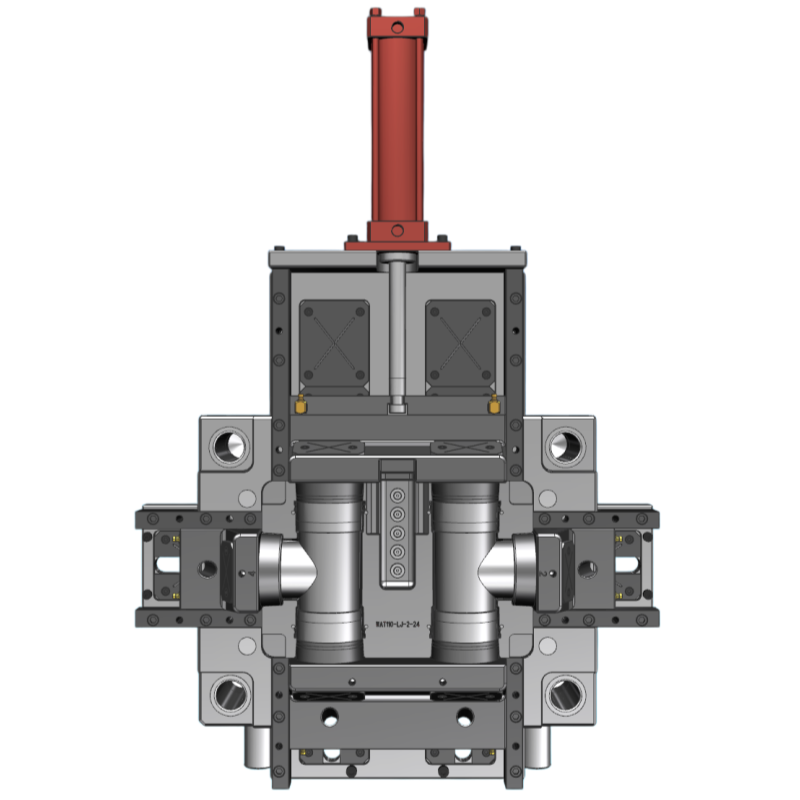

New Tech PVC 110mm Direct Access Gate Oil Heating Conduction Hot Runner Pipe Fitting mould (2 Cavities)

GM014

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	1550KG	730mmX730mm	360T	180000	WAT110-LJ-2

Mold Name

New Tech Double-Layer PVC 110mm Direct Access Gate Oil Heating Conduction Hot Runner Pipe Fitting mould (2×2 Cavities)

GM015

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	2750KG	800mmX800mm	450T	340000	WAT DC-110-LJ-2X2

Mold Name

New Tech Double-Layer PVC 25mm×90° Elbow Oil Heating Conduction Hot Runner Pipe Fitting mould (2×16 Cavities)

GM016

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	1600KG	730mmX730mm	360T	480000	WAT DC-25-90-16X2

Mold Name

New Tech Double-Layer PVC 50mm×45° Elbow Oil Heating Conduction Hot Runner Pipe Fitting mould (2×4 Cavities)

GM017

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	1400KG	570mmX670mm	300T	300000	WAT DC 50-45-4X2

Mold Name

New Tech Double-Layer PVC 20mm Direct Fitting Oil Heating Conduction Hot Runner Pipe Fitting mould (2×32 Cavities)

GM018

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	3000KG	800mmX800mm	530T	650000	WAT DC-SHJ-20-64

Mold Name

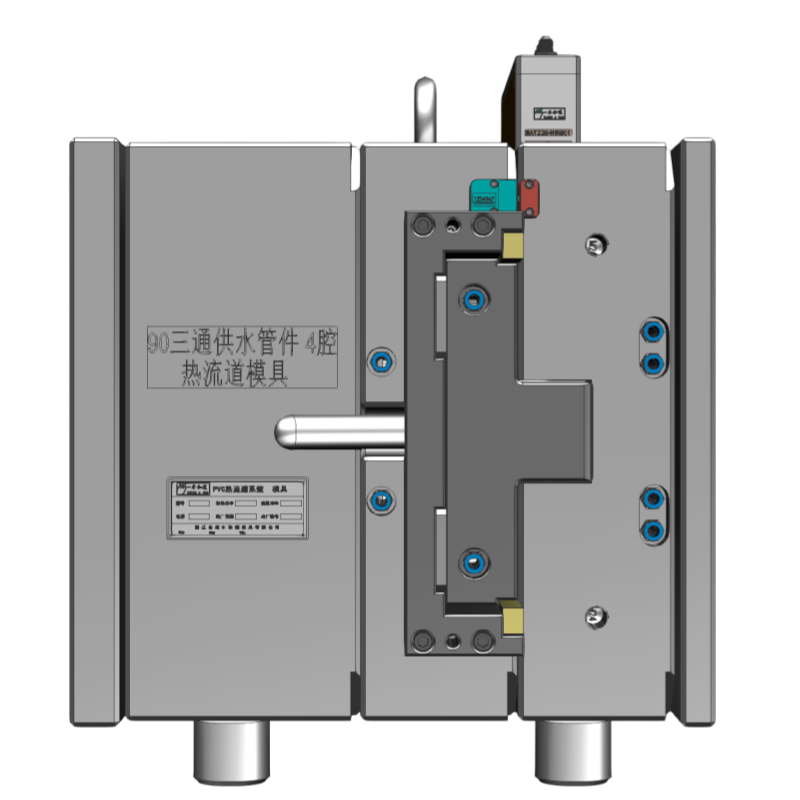

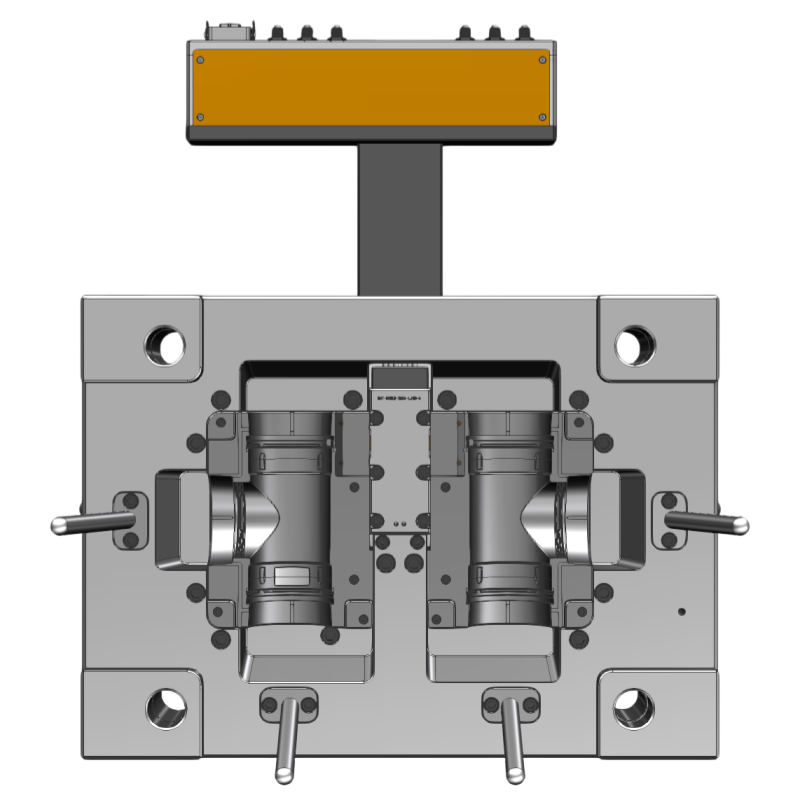

New Tech PVC 90mm Right Three-Way Water Supply Fitting Oil Heating Conduction Hot Runner Pipe Fitting mould (4 Cavities)

GM019

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	1870KG	800mmX800mm	530T	160000	WAT-GSH-90-3T

Mold Name

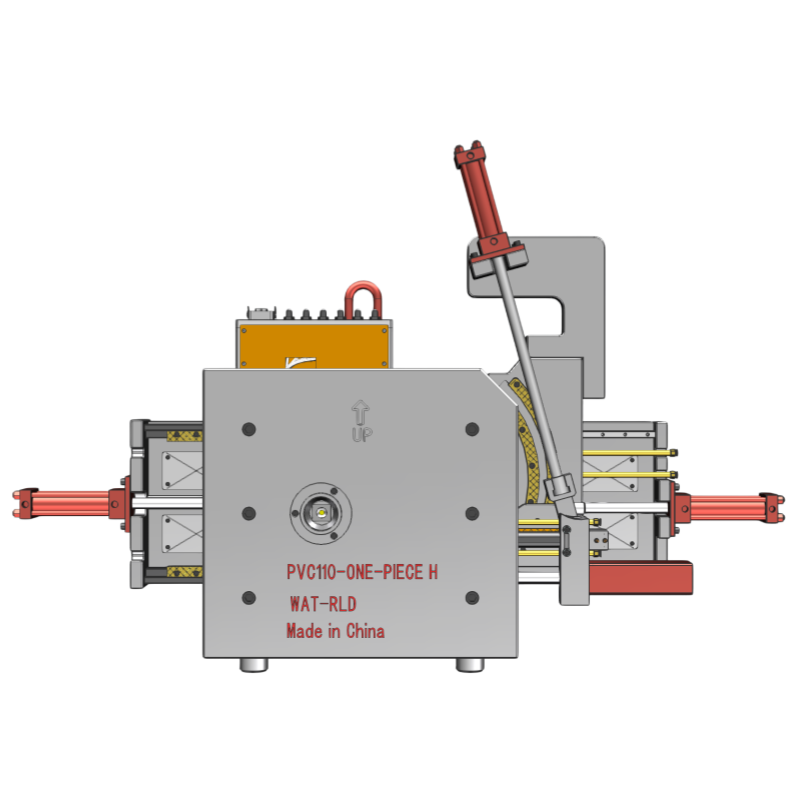

New Tech PVC 110mm H Pipe Fitting Oil Heating Conduction Hot Runner Pipe Fitting mould

GM020

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	2680KG	800mmX800mm	530T	280000	WAT-110HG

Mold Name

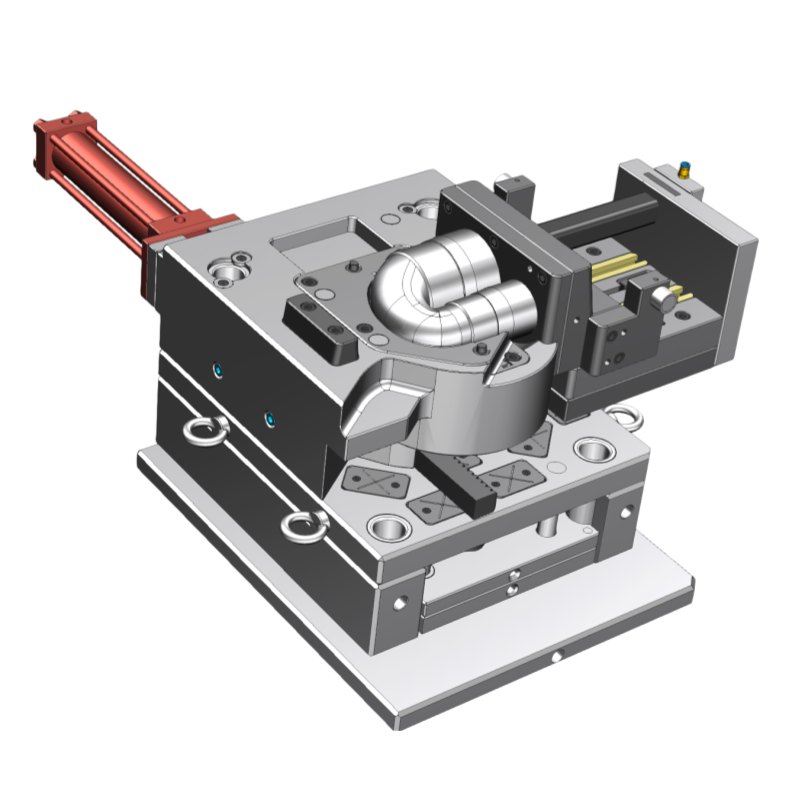

New Tech PVC 100mm×65mm U-Bend Elbow Oil Heating Conduction Hot Runner Pipe Fitting mould

GM021

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	1200KG	670mmX670mm	320T	200000	WAT-U100x65

Mold Name

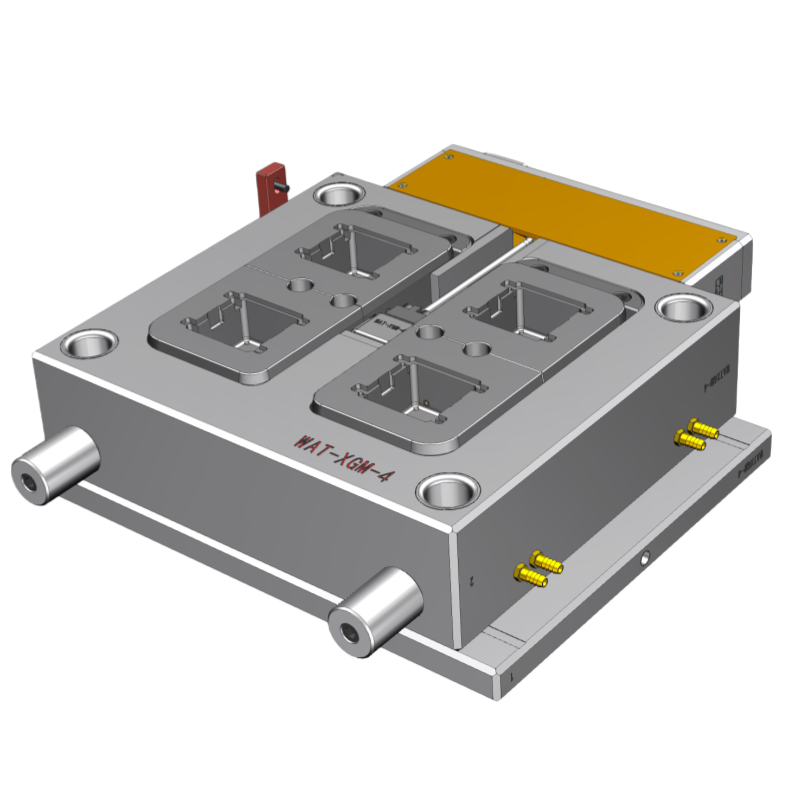

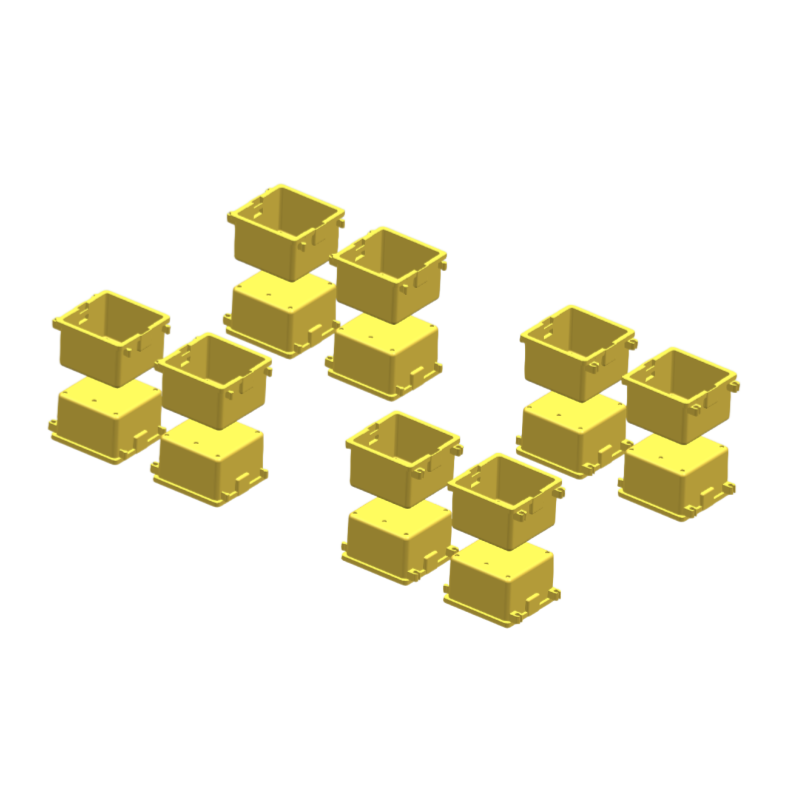

New Tech PVC Electrical Box Oil Heating Conduction Hot Runner mould (4 Cavities)

GM022

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	700KG	570mmX570mm	260T	80000	WAT-XGM-4

Mold Name

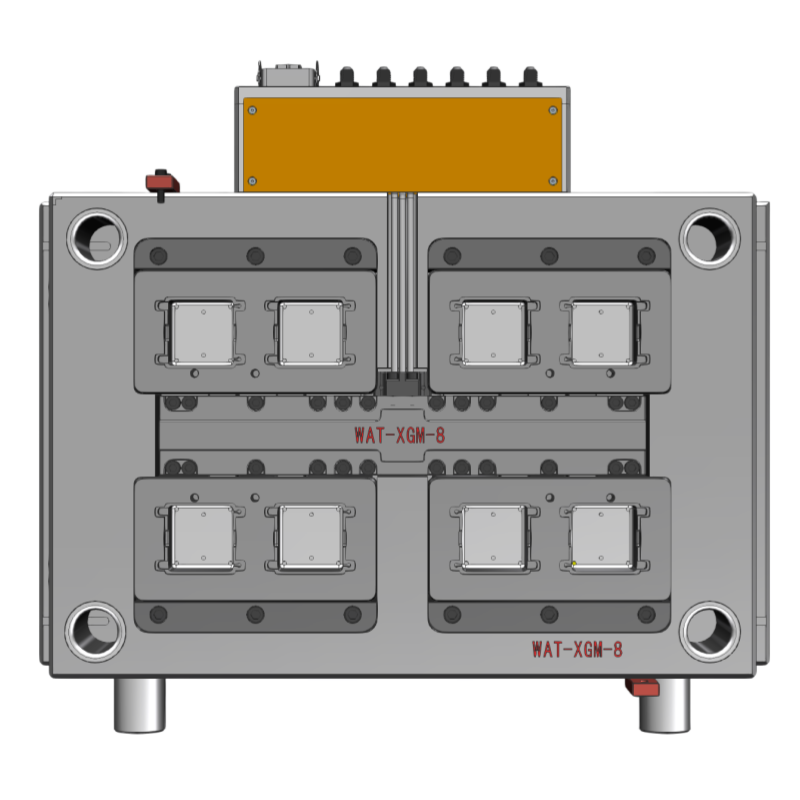

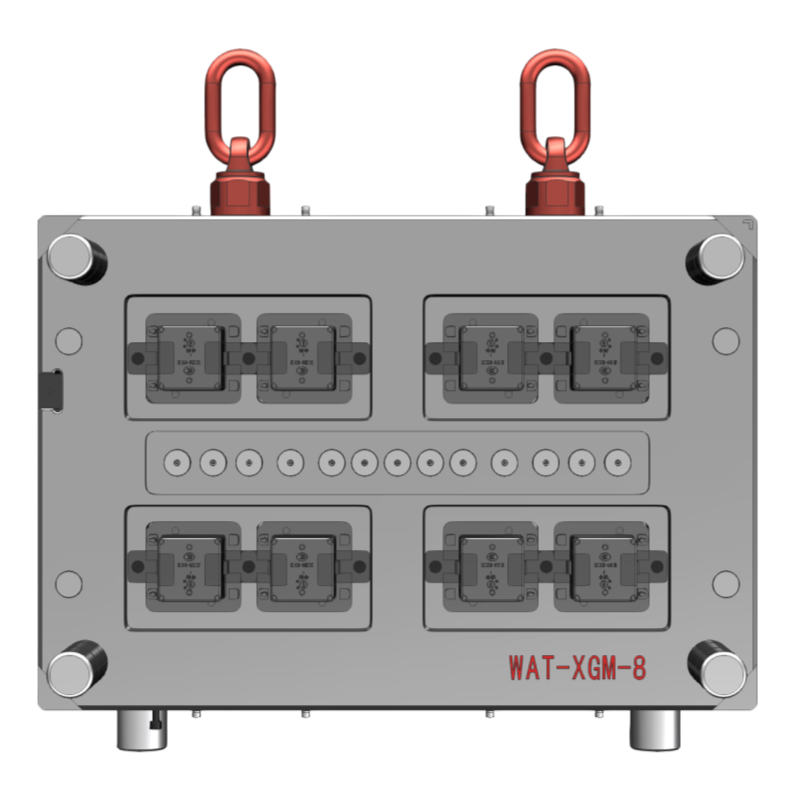

New Tech PVC Electrical Box Oil Heating Conduction Hot Runner mould (8 Cavities)

GM023

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	1350KG	670mmX670mm	320T	160000	WAT-XGM-8

Mold Name

New Tech Double-Layer PVC Electrical Box Oil Heating Conduction Hot Runner mould (2×8 Cavities)

GM024

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13	A-level standard	Oil-Heated Conduction Hot Runner - Lurking Gate	2380KG	730mmX730mm	450T	320000	WAT-XGM-16

Mold Name

PVC 2" Diagonal Four-Way Cross Pipe Fitting mould

GM025

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Direct gate injection	700KG	660mmX660mm	300T	140000	ER160801

Mold Name

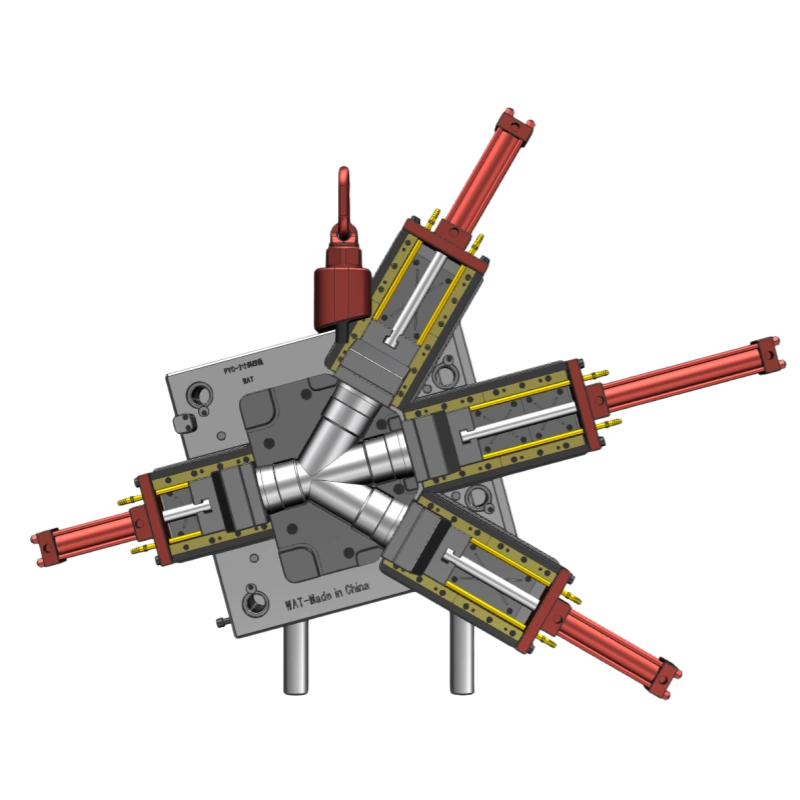

PVC 3" Diagonal Four-Way Cross Pipe Fitting mould

GM026

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Direct gate injection	1300KG	660mmX660mm	300T	160000	ER160802

Mold Name

PVC 4" Diagonal Four-Way Cross Pipe Fitting mould

GM027

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Direct gate injection	1500KG	710mmX710mm	360T	180000	ER160803

Mold Name

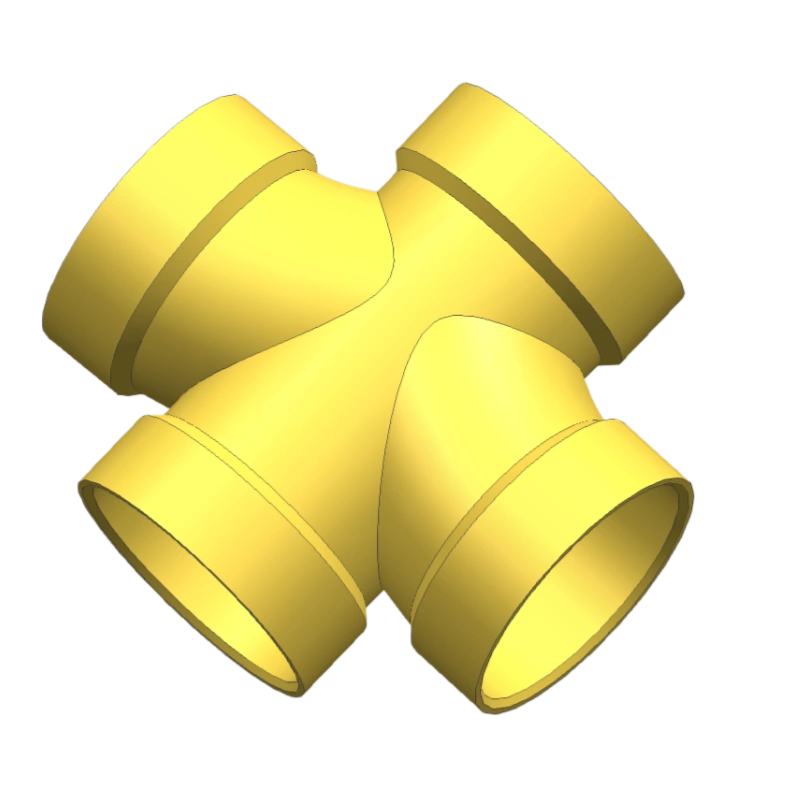

PVC 2" Four-Way Water Flow Pipe Fitting mould

GM028

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Direct gate injection	600KG	570mmX570mm	250T	160000	ER160804

Mold Name

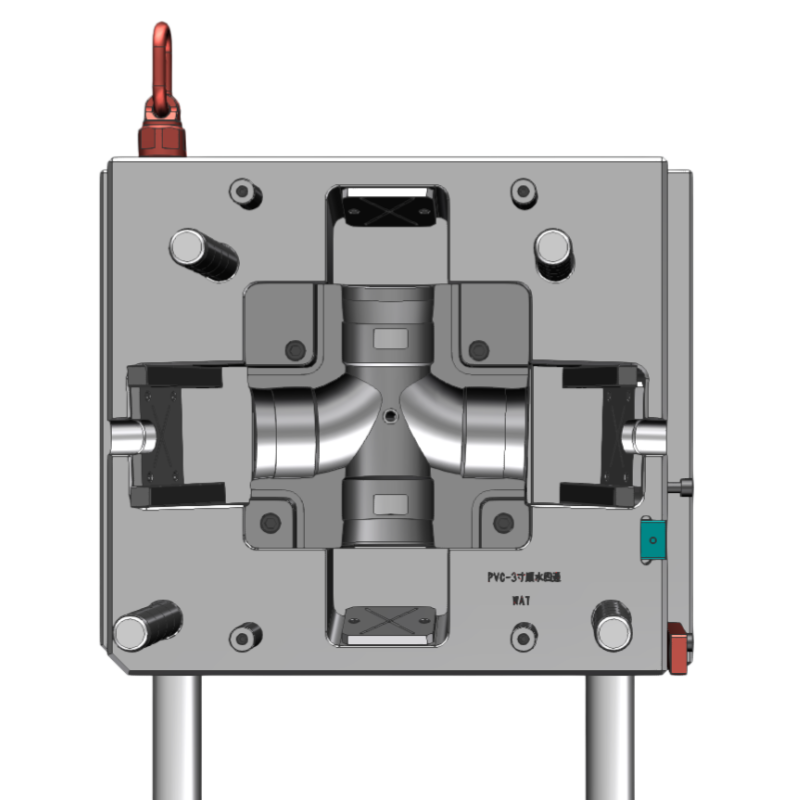

PVC 3" Four-Way Water Flow Pipe Fitting mould

GM029

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Direct gate injection	890KG	670mmX670mm	300T	180000	ER160805

Mold Name

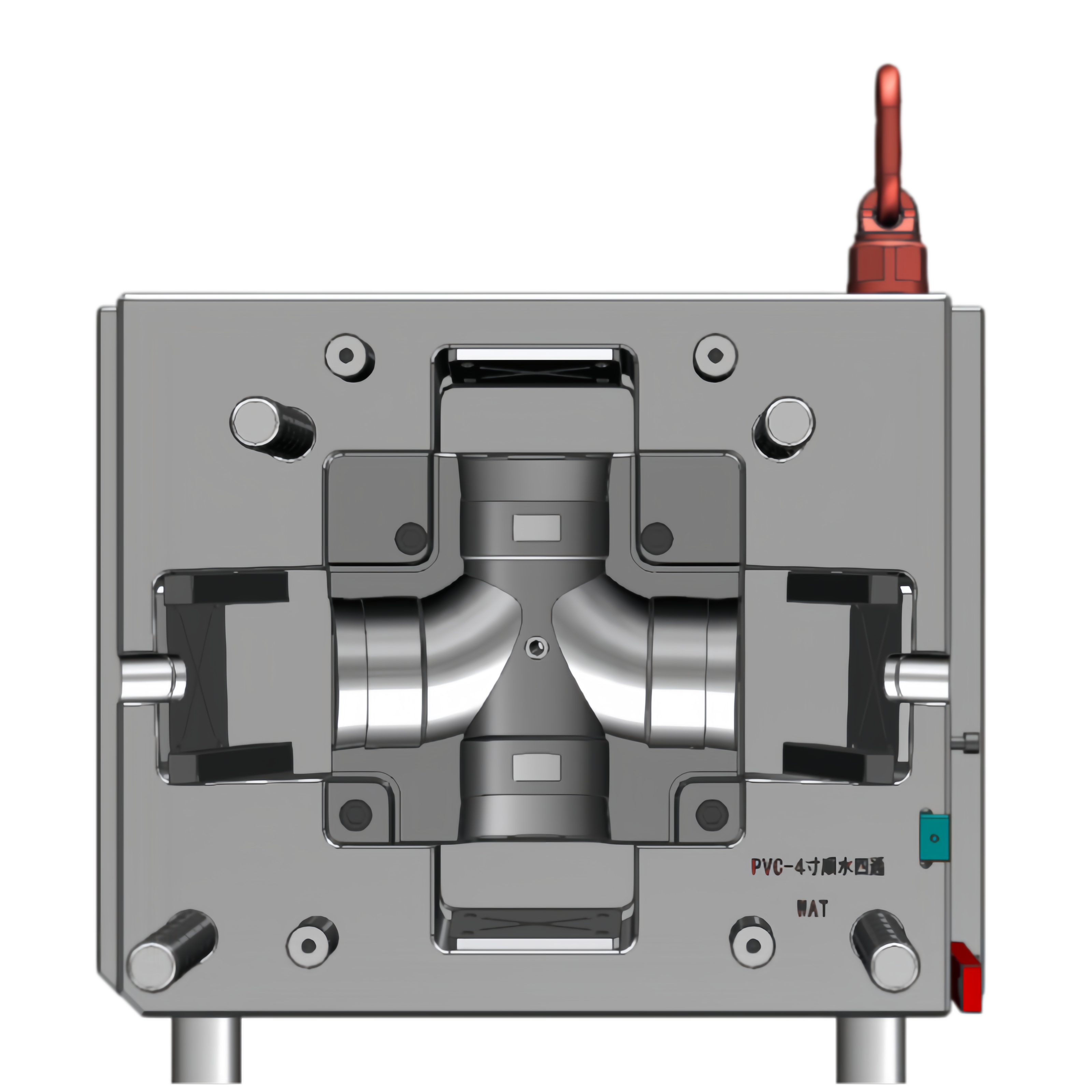

PVC 4" Four-Way Water Flow Pipe Fitting mould

GM030

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Direct gate injection	1750KG	710mmX710mm	360T	200000	ER160806

Mold Name

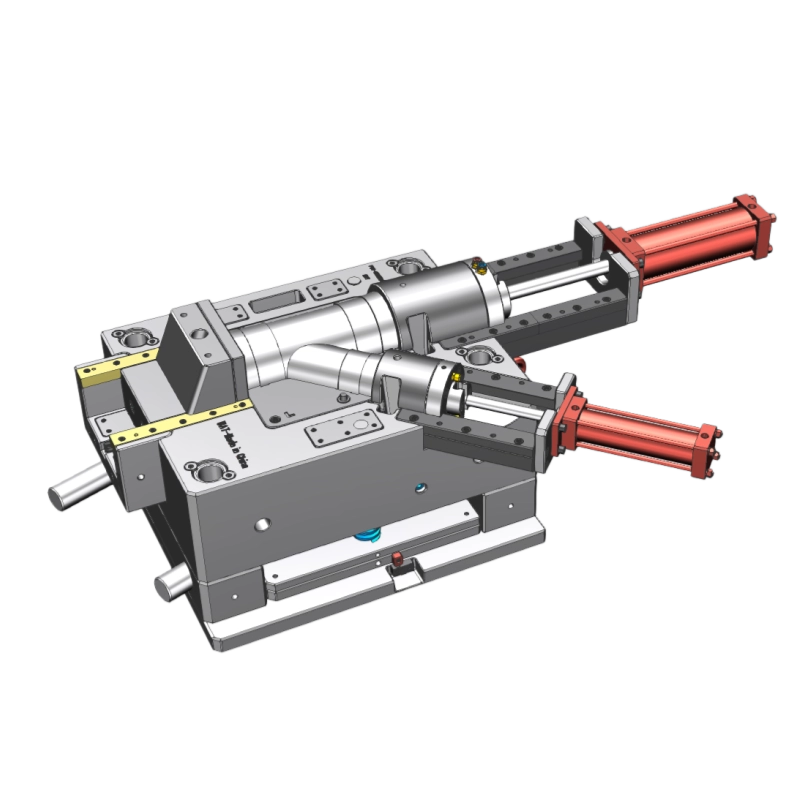

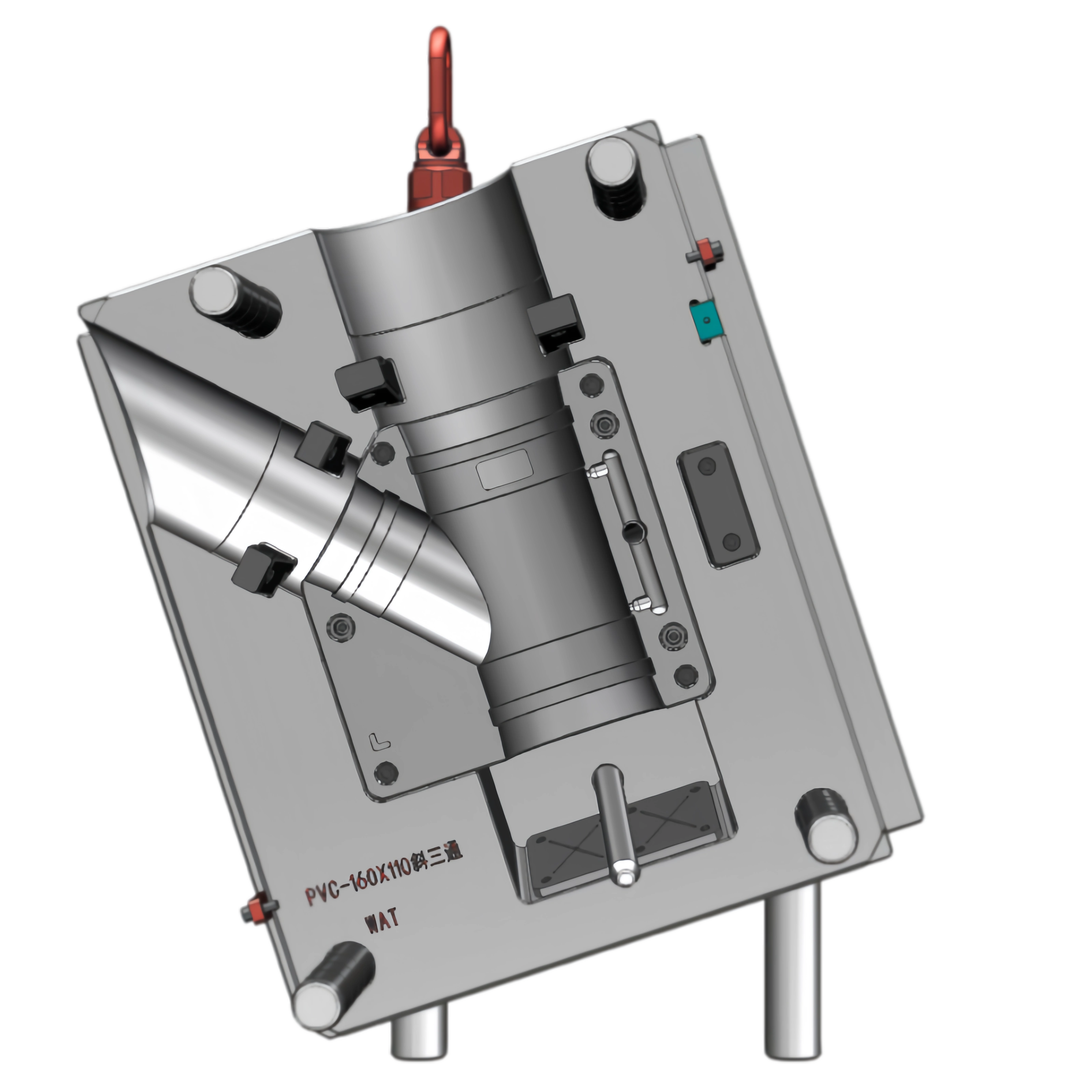

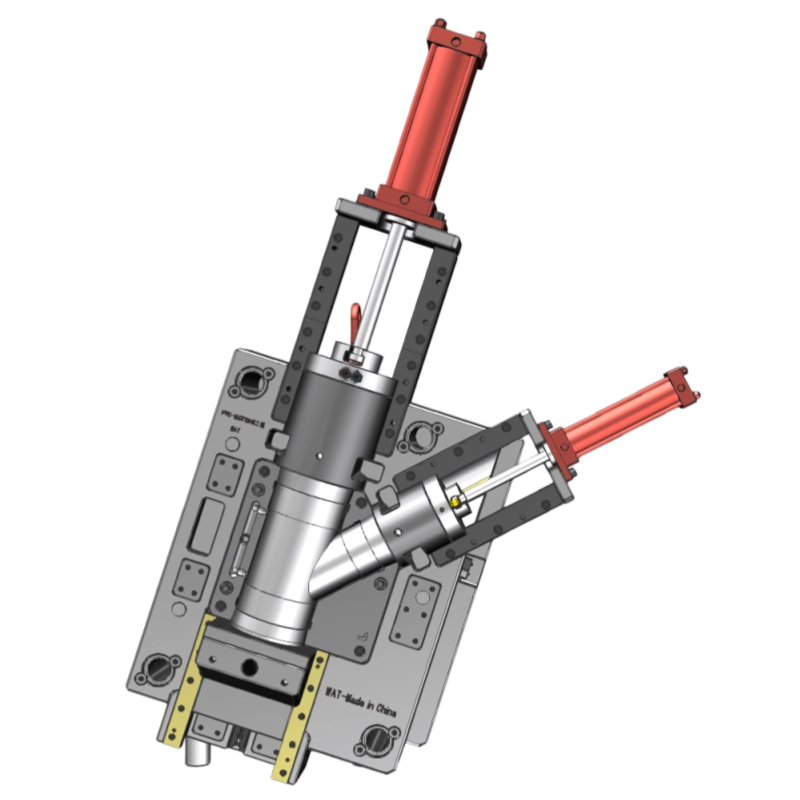

PVC 160mm×110mm Diagonal Three-Way Pipe Fitting mould

GM031

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Sloped gate cold runner	1750KG	710mmX710mm	360T	200000	ER120801

Mold Name

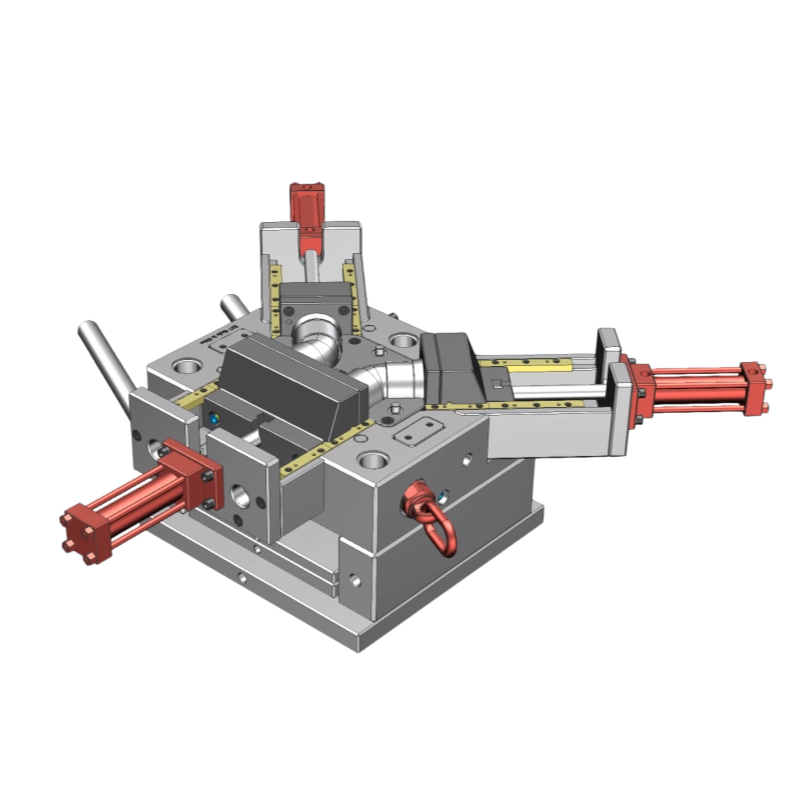

PVC 110mm×50mm Four-Way Water Flow Pipe Fitting mould

GM032

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Sloped gate cold runner	1300KG	570mmX570mm	320T	130000	ER160802

Mold Name

PVC 75mm Four-Way & Three-Way Fitting Interchangeable Insert Pipe Fitting mould

GM033

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Direct gate injection	860KG	670mmX670mm	320T	150000	ER160701

Mold Name

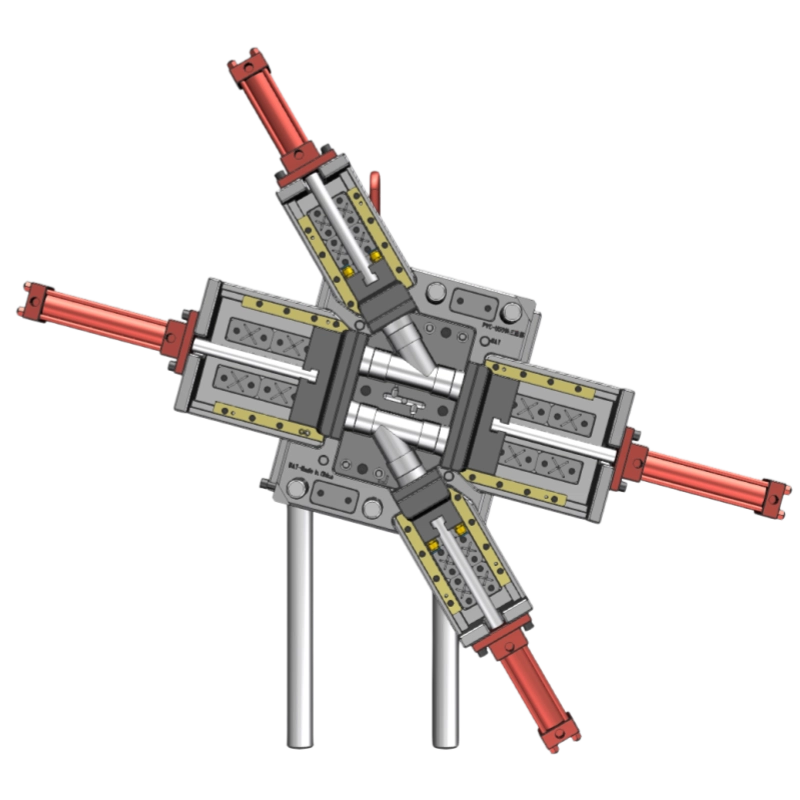

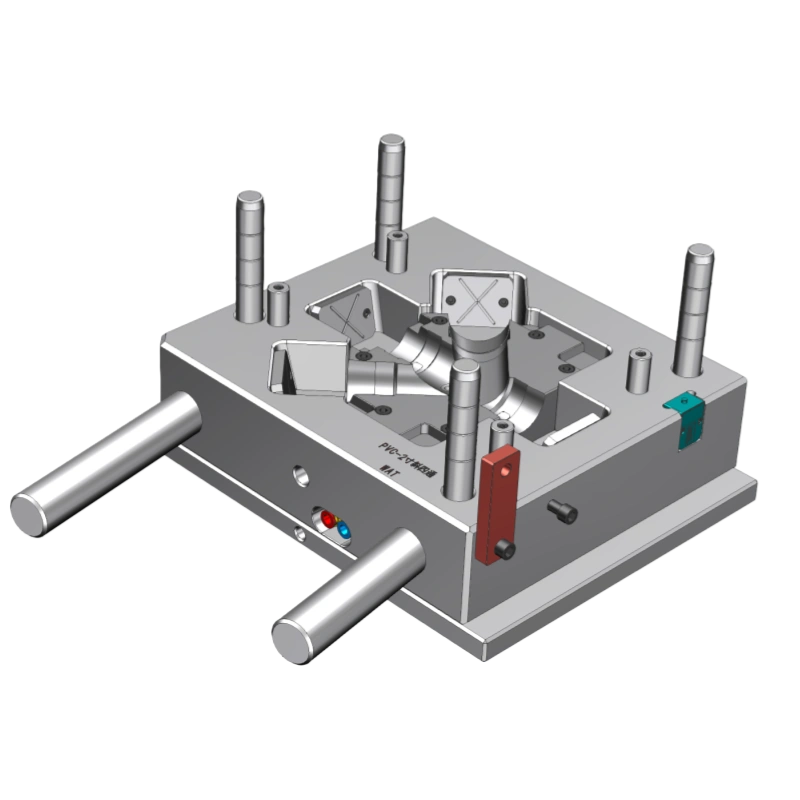

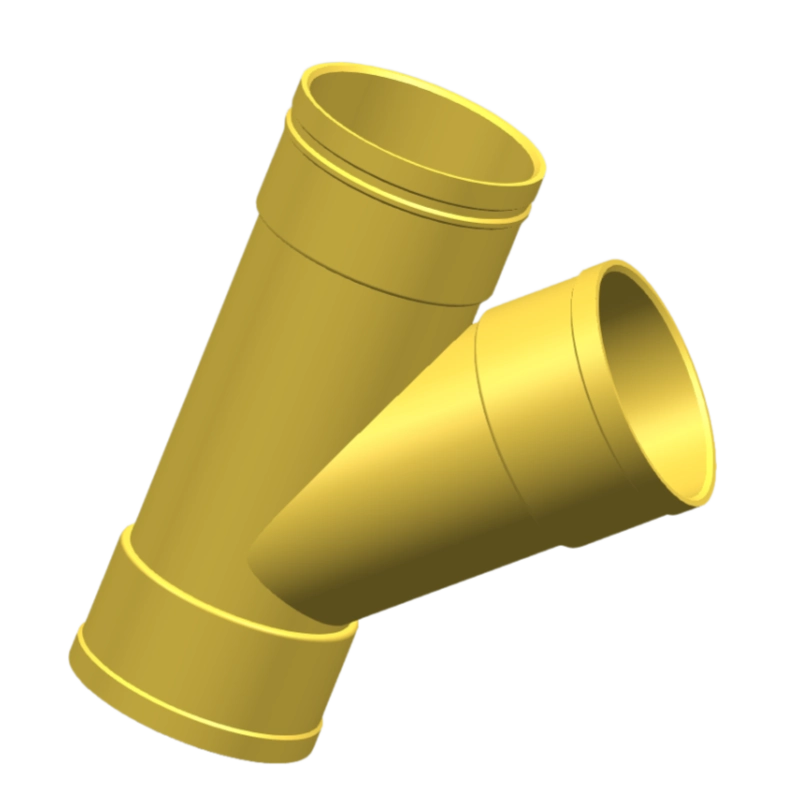

PVC-U 50mm Diagonal Three-Way Pipe Fitting mould (2 Cavities)

GM034

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Direct gate injection	560KG	510mmX510mm	200T	¥100000	ER160702

Mold Name

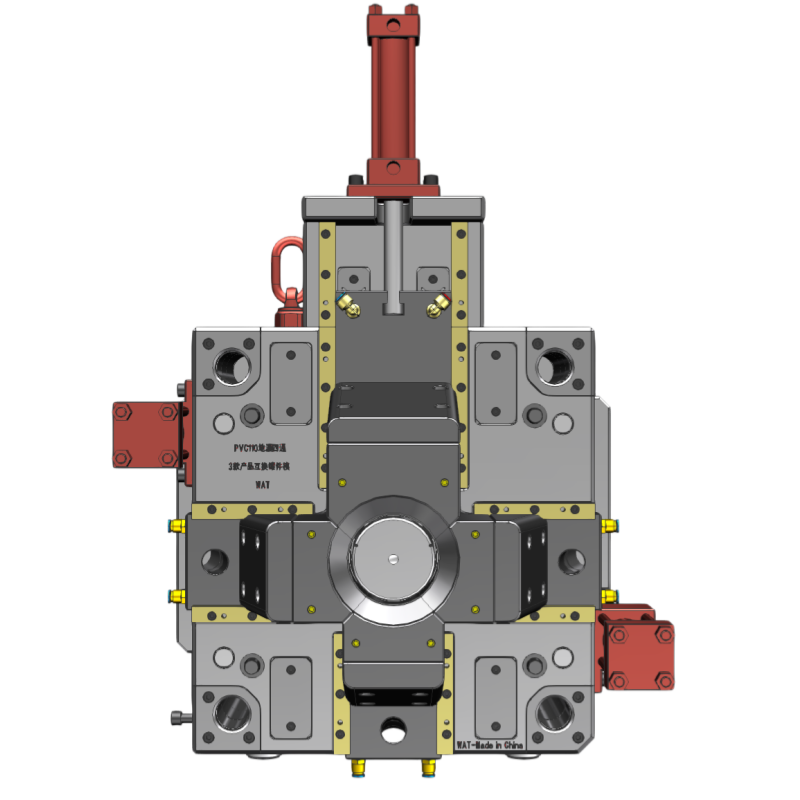

PVC 110mm Interchangeable Insert Pipe Fitting mould for Three Kinds of Sink Well Four-Way Connector

GM035

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Direct gate injection	1200KG	670mmX670mm	320T	150000	ER160703

Mold Name

PVC 110mm Sink Well ×4 Socket and Spigot 50 Inner Diameter Pipe Fitting mould

GM036

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Direct gate injection	970KG	570mmX570mm	260T	120000	ER160704

Mold Name

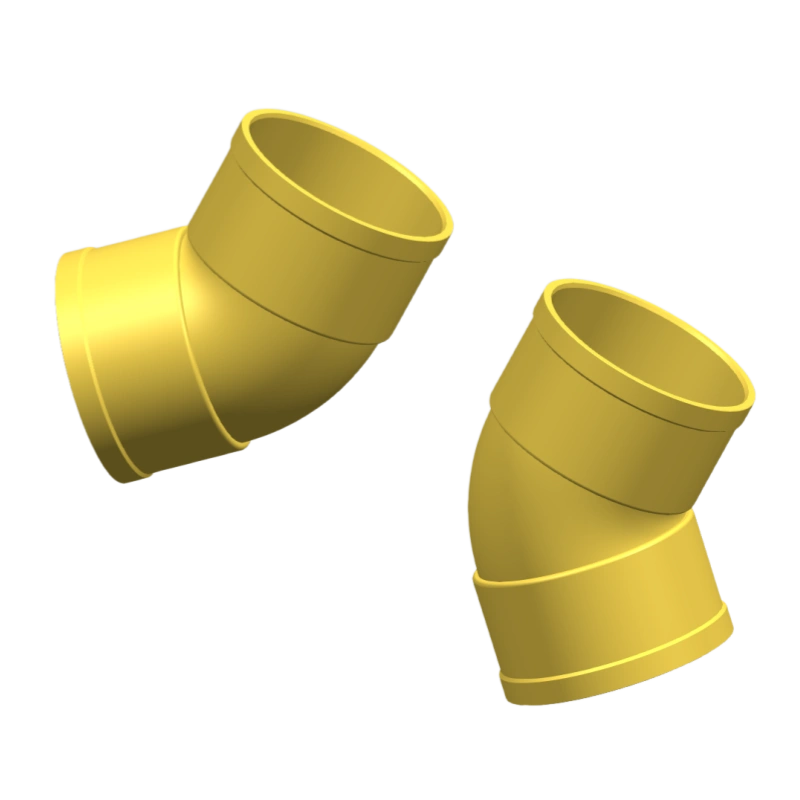

PVC-U 75mm×45° Pipe Fitting mould (2 Cavities)

GM037

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Direct gate injection	740KG	570mmX570mm	260T	80000	ER160705

Mold Name

PVC 75mm Plug Pipe Fitting mould

GM038

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13	A-level standard	Direct gate injection	120KG	360mmX360mm	86T	25000	ER160706

Mold Name

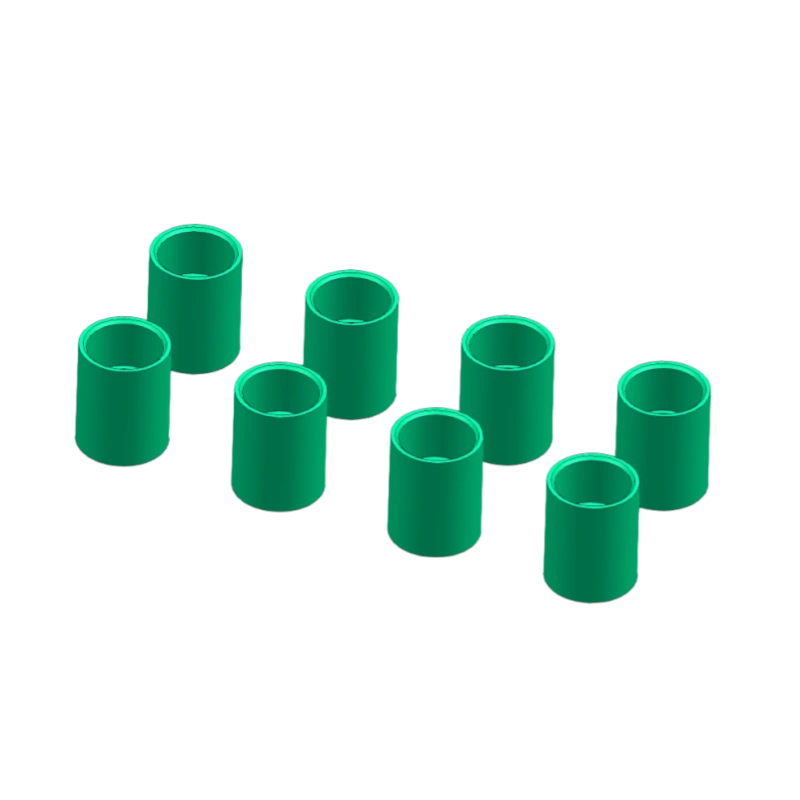

PVC 1" Straight Coupling Pipe Fitting Mould (8 Cavities)

GM039

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13	A-level standard	Latent gate injection	460KG	510mmX510mm	200T	80000	ER121301

Mold Name

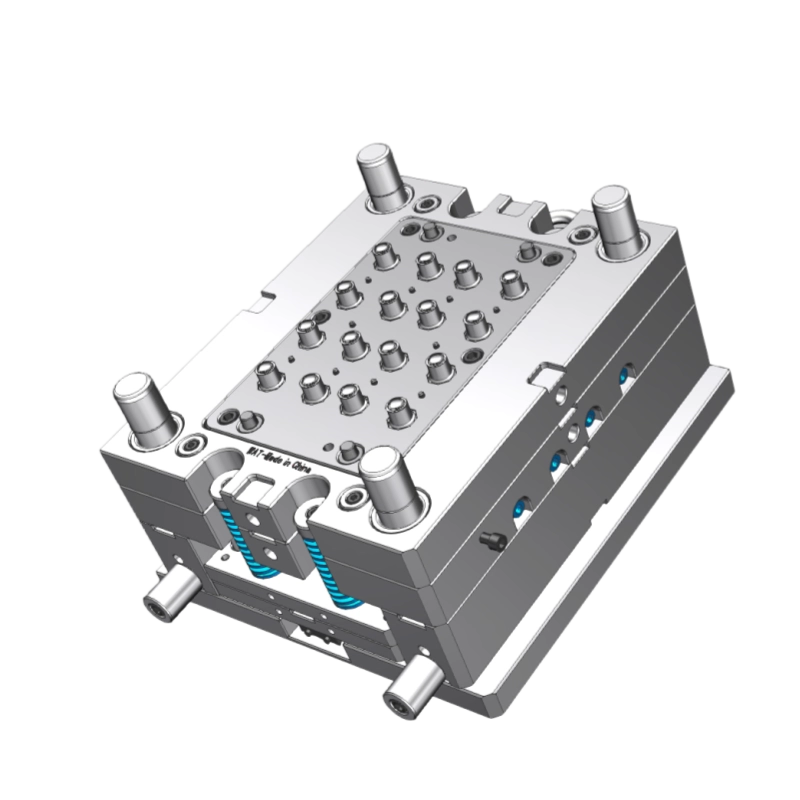

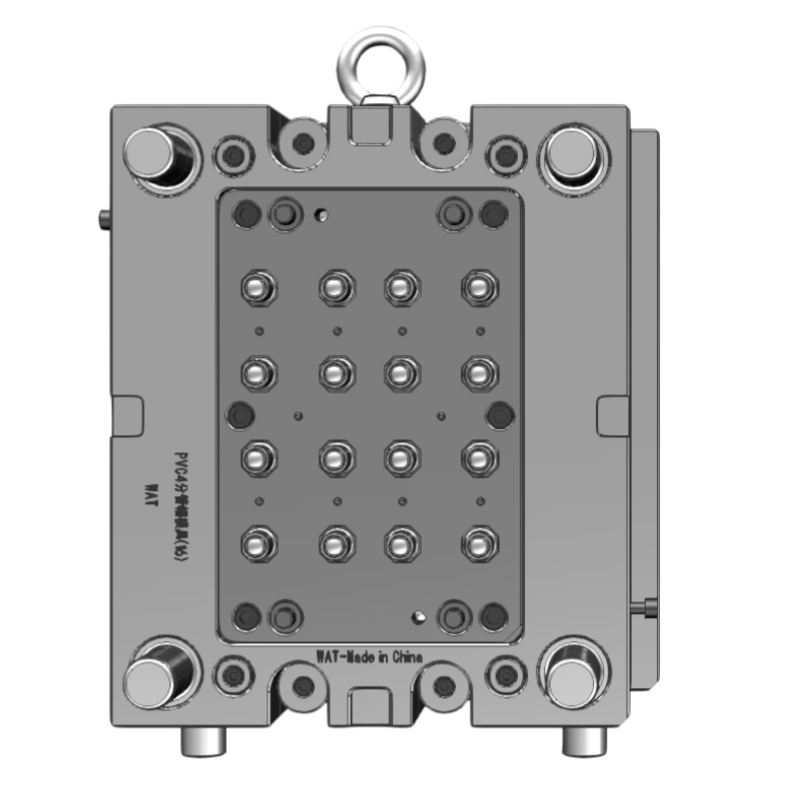

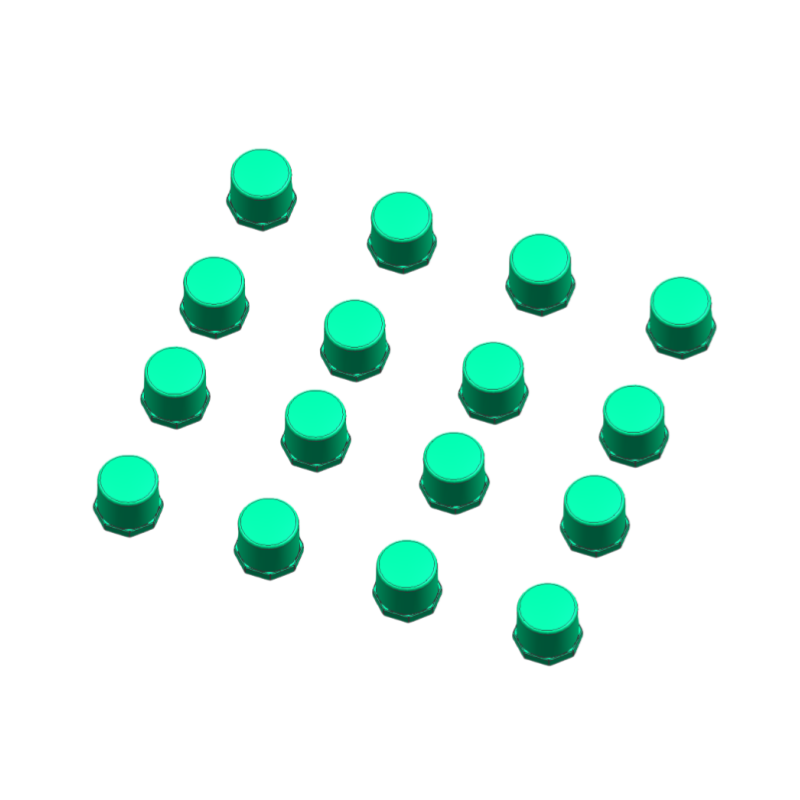

PVC 1/2" Pipe Cap Pipe Fitting mould (16 Cavities)

GM040

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13	A-level standard	Latent gate injection	480KG	510mmX510mm	200T	90000	ER121302

Mold Name

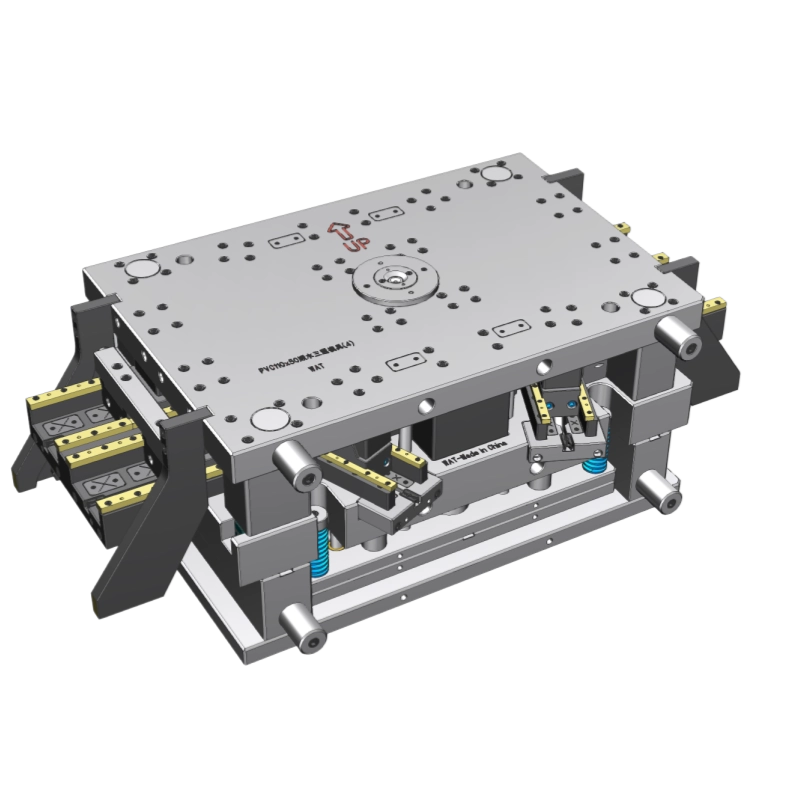

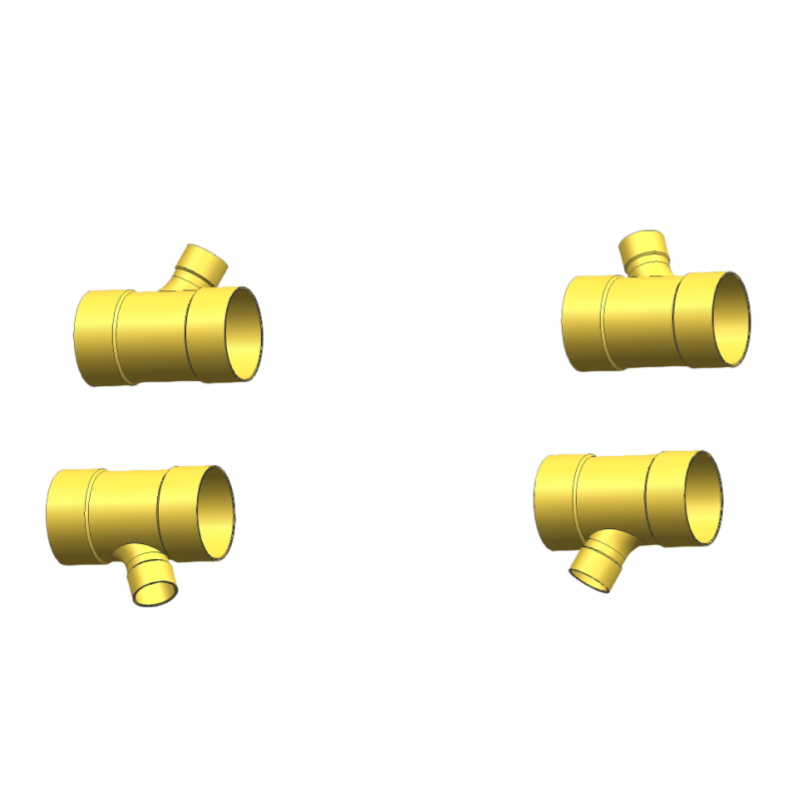

PVC 110mm×50mm Downstream Three-Way Pipe Fitting mould (4 Cavities)

GM041

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	3500KG	890mmX890mm	650T	350000	ER121303

Mold Name

PVC 1/2" Socket and Spigot ×4 Thread Direct Pipe Fitting mould (16 Cavities)

GM042

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	960KG	670mmX670mm	320T	150000	ER121304

Mold Name

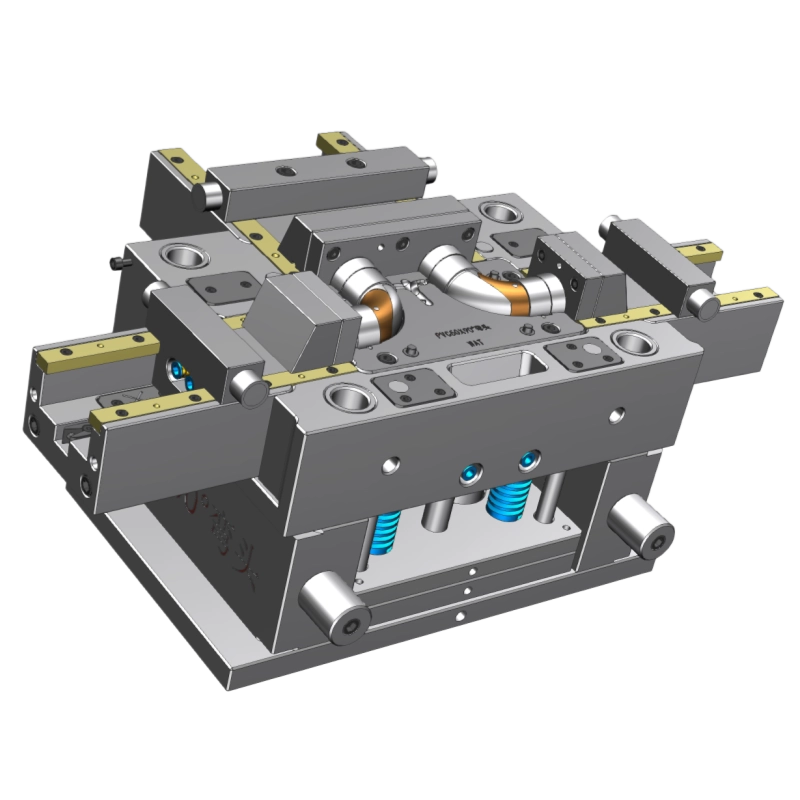

PVC 50mm×90° Elbow Pipe Fitting mould (2 Cavities)

GM043

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	650KG	510mmX510mm	200T	70000	ER121601

Mold Name

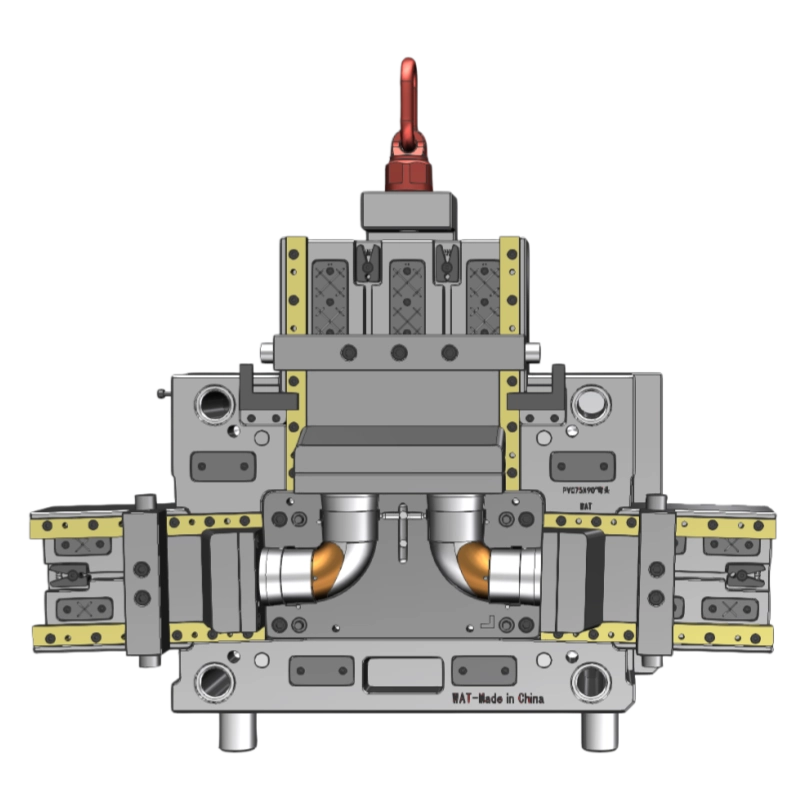

PVC 75mm×90° Elbow Pipe Fitting mould (2 Cavities)

GM044

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	1400KG	570mmX570mm	200T	85000	ER121602

Mold Name

PVC 110mm×90° Elbow Pipe Fitting mould (2 Cavities)

GM045

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	2000KG	670mmX670mm	320T	120000	ER121603

Mold Name

PVC 50mm×90° Elbow With Inspection Port Pipe Fitting mould

GM046

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	450KG	510mmX510mm	200T	65000	ER121604

Mold Name

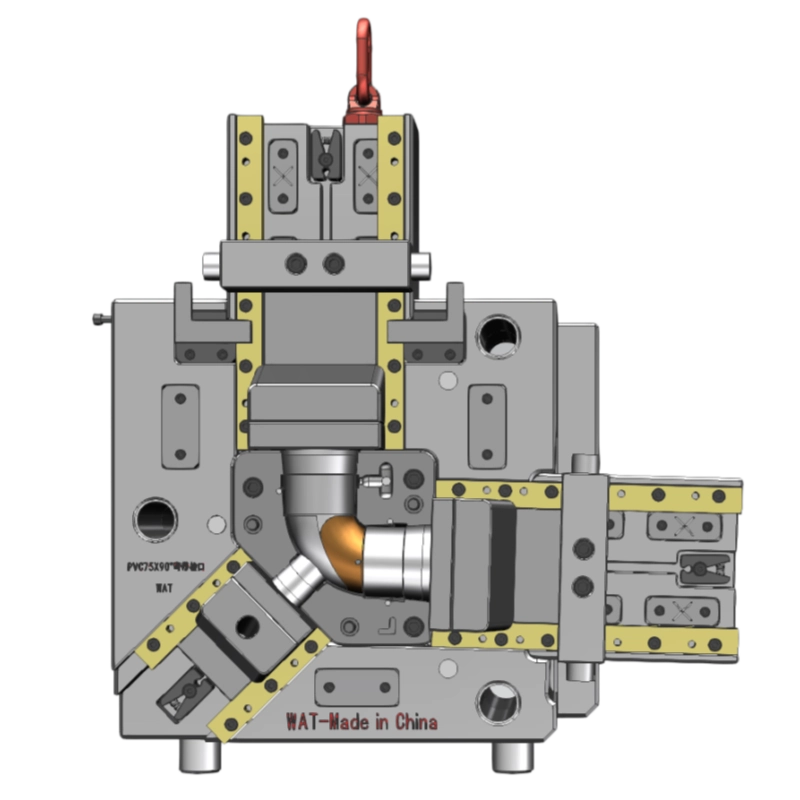

PVC 75mm×90° Elbow With Inspection Port Pipe Fitting mould

GM047

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	970KG	510mmX510mm	200T	75000	ER121605

Mold Name

PVC 110mm×90° Elbow With Inspection Port Pipe Fitting mould

GM048

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	1400KG	570mmX570mm	260T	95000	ER121606

Mold Name

PVC 50mm Water Flow Three-Way Pipe Fitting mould (2 Cavities)

GM049

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	760KG	570mmX570mm	260T	95000	ER121607

Mold Name

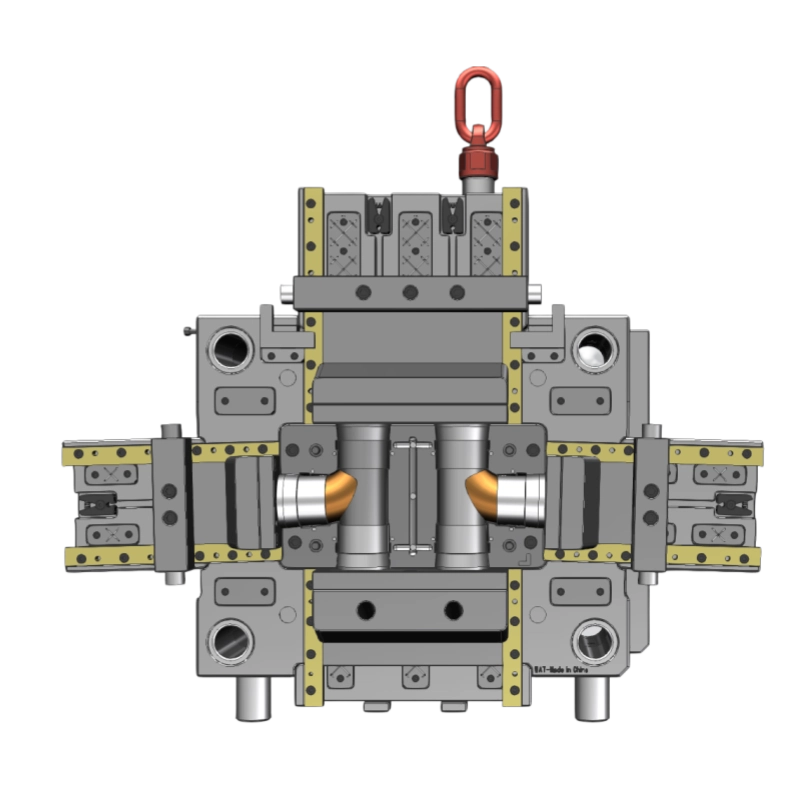

PVC 75mm Water Flow Three-Way Pipe Fitting mould (2 Cavities)

GM050

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	1260KG	670mmX670mm	320T	110000	ER121608

Mold Name

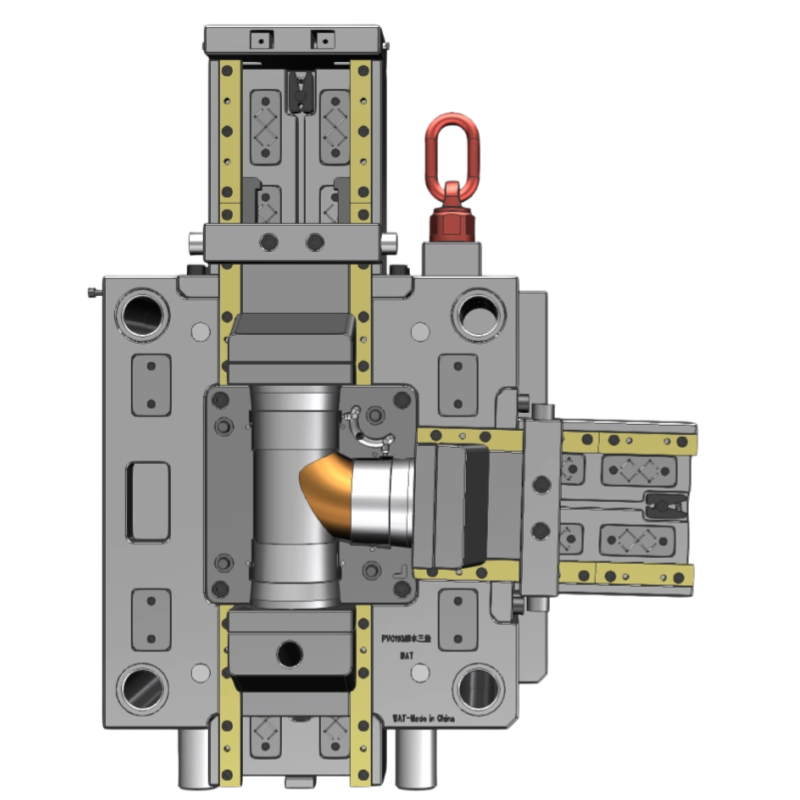

PVC 110mm Water Flow Three-Way Pipe Fitting mould

GM051

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	1630KG	670mmX670mm	320T	95000	ER121609

Mold Name

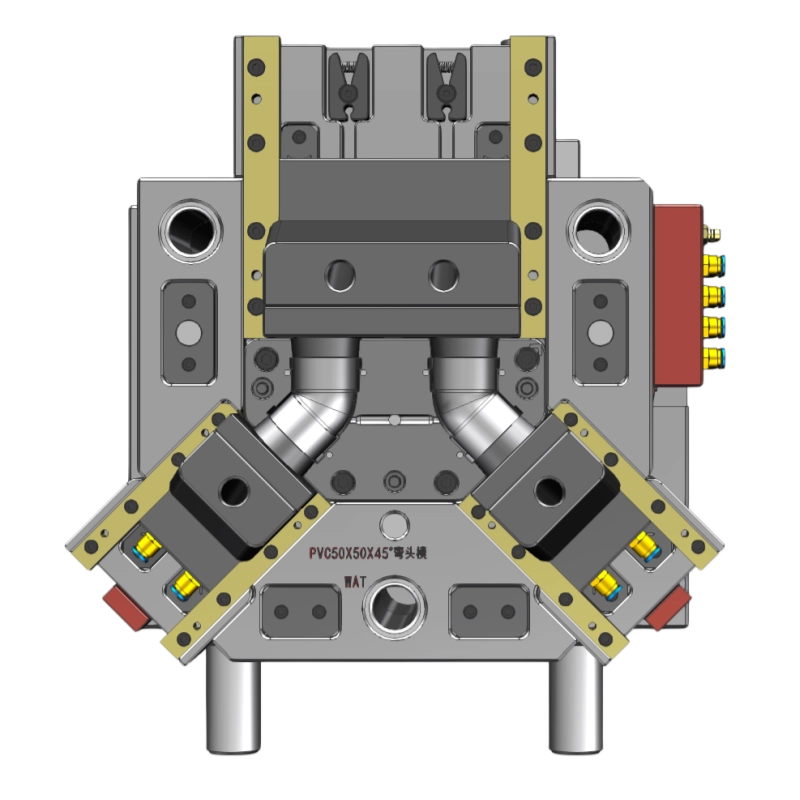

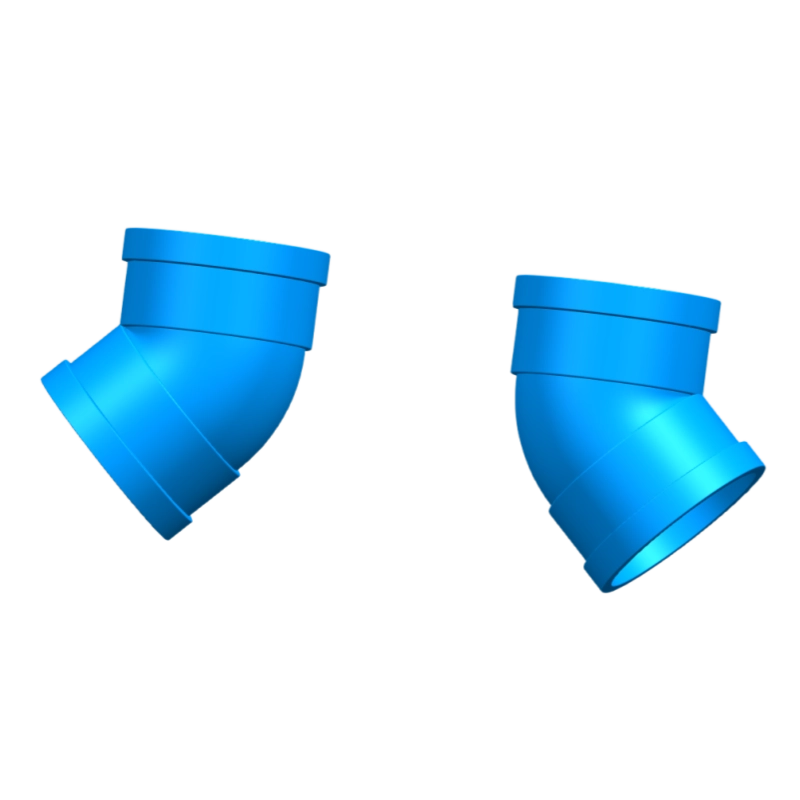

PVC 50mm×45° Pipe Fitting mould (2 Cavities)

GM052

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	550KG	510mmX510mm	260T	70000	ER1211501

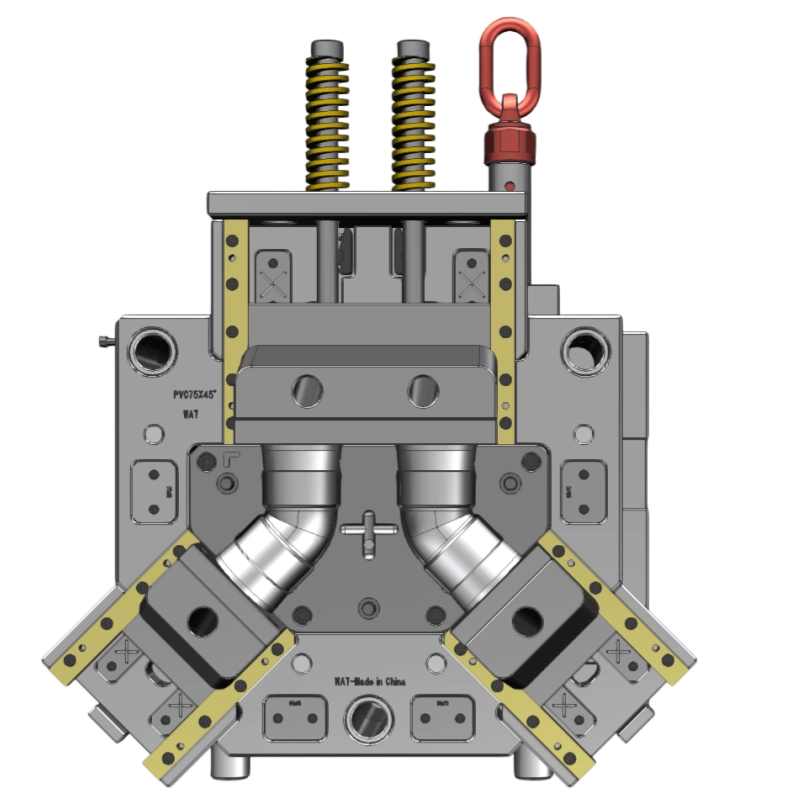

Mold Name

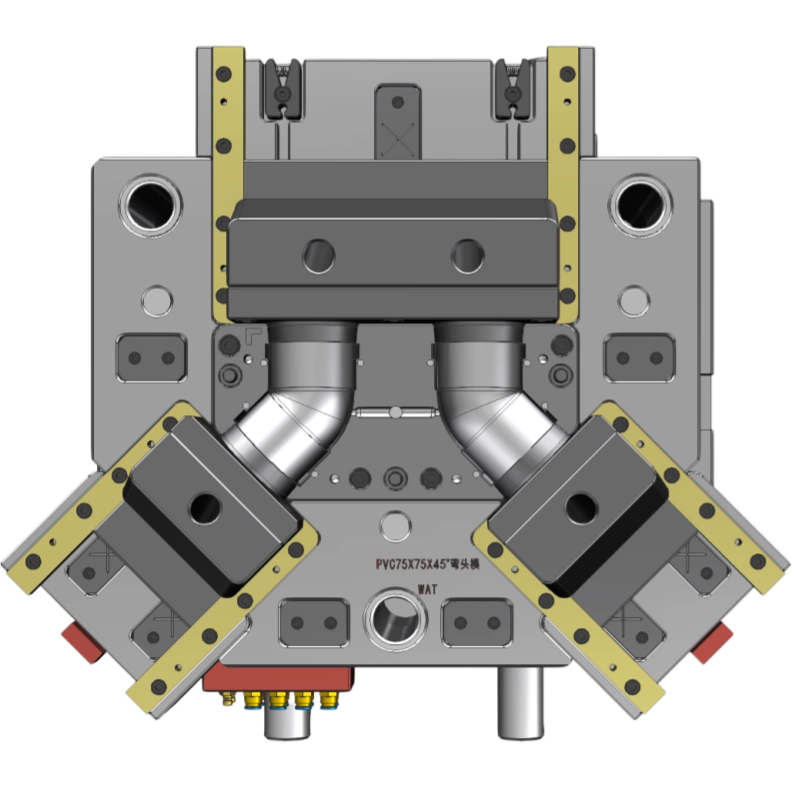

PVC 75mm×45° Elbow Pipe Fitting Mould (2 Cavities)

GM053

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	900KG	570mmX570mm	360T	85000	ER1211502

Mold Name

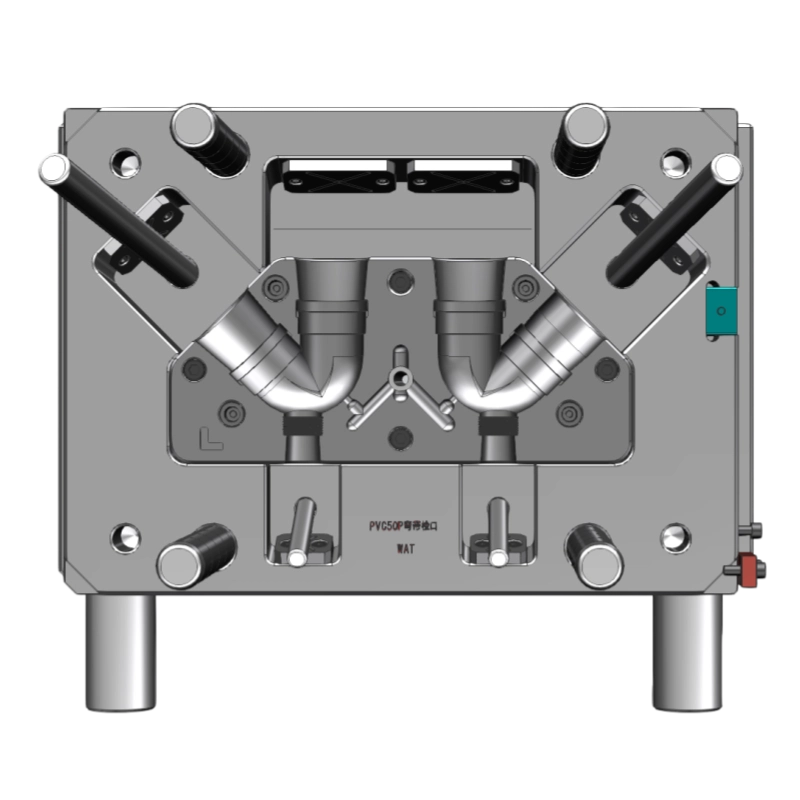

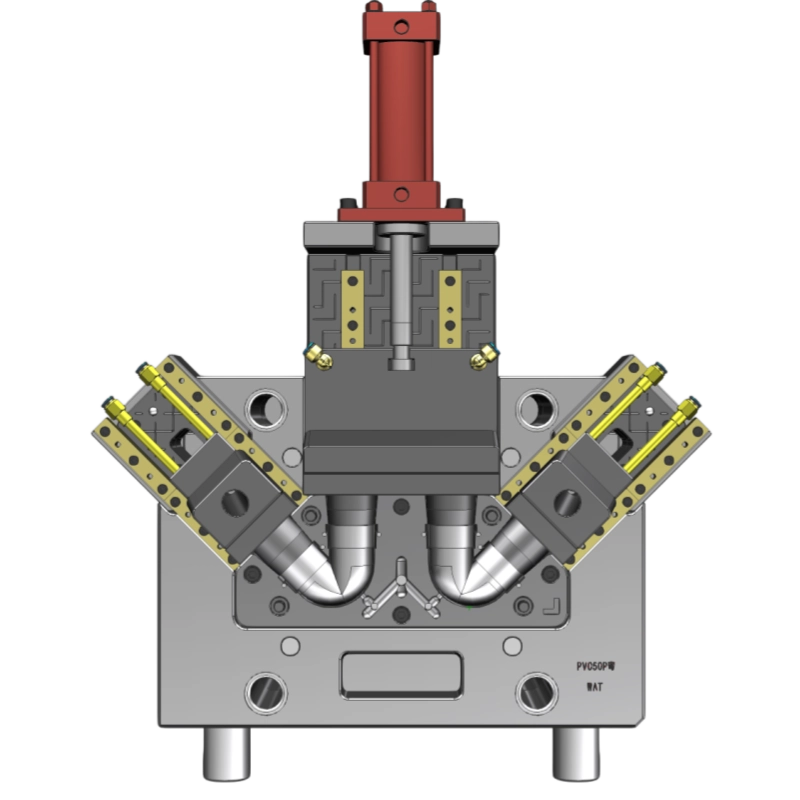

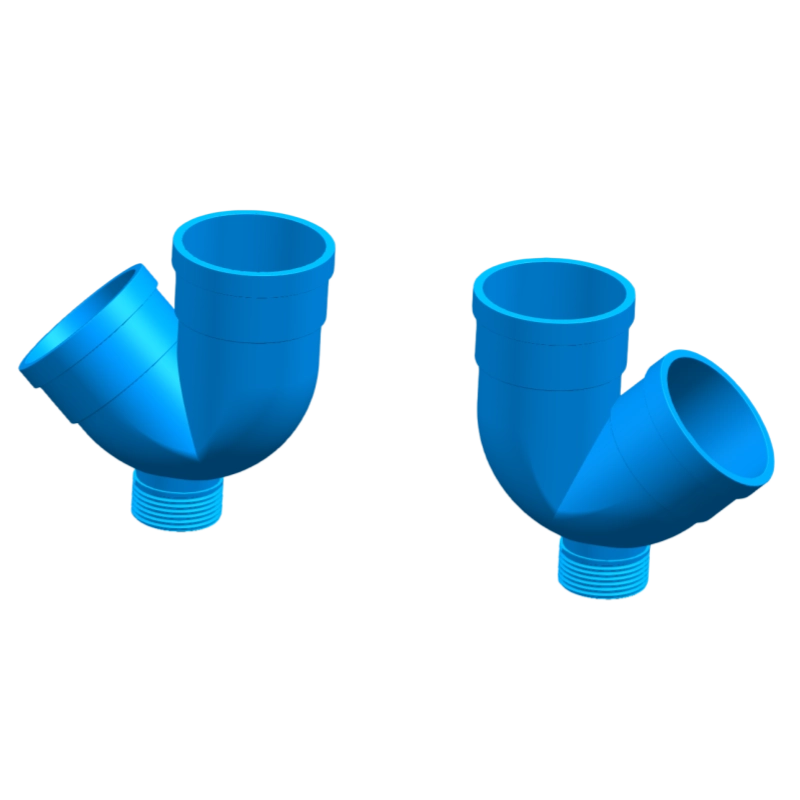

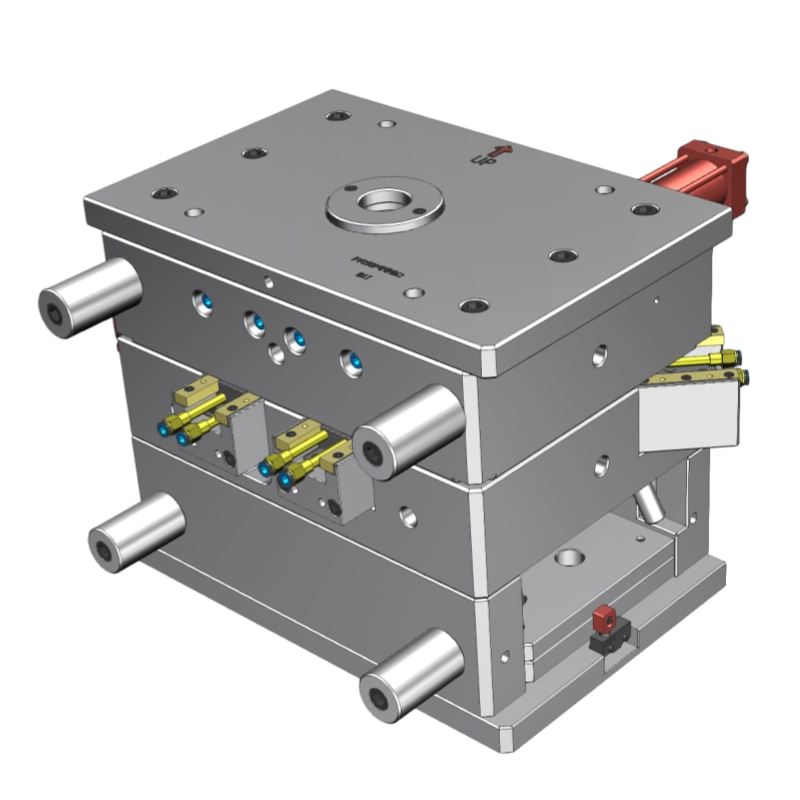

PVC 50mm P Trap With Inspection Port Pipe Fitting Mould (2 Cavities)

GM054

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	750KG	570mmX570mm	260T	75000	ER1211531

Mold Name

PVC 50mm P Trap Pipe Fitting Mould (2 Cavities)

GM055

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	700KG	570mmX570mm	260T	70000	ER1211532

Mold Name

PVC 75mm P Trap With Inspection Port Pipe Fitting Mould (2 Cavities)

GM056

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
-	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	900KG	570mmX570mm	260T	90000	ER1211533

Mold Name

PVC 75mm P Trap Pipe Fitting mould (2 Cavities)

GM057

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	P20 - Cu+C	B-level standard	Direct gate injection	900KG	570mmX570mm	260T	85000	ER1211534

Mold Name

PVC 75mm×45° Elbow Pipe Fitting Mould (2 Cavities)

GM058

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	1130KG	570mmX570mm	260T	85000	ER121701

Mold Name

PVC 4"×45° Elbow Pipe Fitting Mould (2 Cavities)

GM059

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	1860KG	670mmX670mm	320T	120000	ER121702

Mold Name

PVC 1-1/2" Straight Connector Pipe Fitting Mould (4 Cavities)

GM060

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	520KG	570mmX570mm	260T	50000	ER121703

Mold Name

PVC 2" Straight Connector Pipe Fitting Mould (4 Cavities)

GM061

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	890KG	570mmX570mm	260T	70000	ER121704

Mold Name

PVC 75mm Straight Connector Pipe Fitting Mould (2 Cavities)

GM062

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	880KG	570mmX570mm	260T	45000	ER121705

Mold Name

PVC 4" Straight Connector Pipe Fitting Mould (2 Cavities)

GM063

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	1250KG	670mmX670mm	320T	85000	ER121706

Mold Name

PVC 4" Water Flow Tee Pipe Fitting Mould (2 Cavities)

GM064

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	2560KG	670mmX670mm	320T	157000	ER121707

Mold Name

PVC 75mm 45° V Trap Pipe Fitting Mould

GM065

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	1050KG	570mmX570mm	260T	80000	ER121708

Mold Name

PVC 75mm×2" Reducing Straight Connector Pipe Fitting mould (2 Cavities)

GM066

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	280KG	510mmX510mm	200T	60000	ER121709

Mold Name

PVC 4"×75mm Reducing Straight Connector Pipe Fitting Mould (2 Cavities)

GM067

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	530KG	510mmX510mm	200T	75000	ER121710

Mold Name

PVC 4"×90° Elbow Pipe Fitting Mould (2 Cavities)

GM068

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	2450KG	670mmX670mm	320T	160000	ER131001

Mold Name

PVC 3/4"×1/2" Reducing Tee Pipe Fitting Mould (8 Cavities)

GM069

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	890KG	570mmX570mm	260T	105000	ER131002

Mold Name

PVC 1"×3/4" Reducing Tee Pipe Fitting mould (8 Cavities)

GM070

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	1090KG	570mmX570mm	260T	120000	ER131003

Mold Name

PVC 1"×1/2" Reducing Tee Pipe Fitting mould (8 Cavities)

GM071

Product & Mold Images

Mold Info

Frame Material	Cavity & Core	Slide Material	Design Std	Gate Type	Weight	Tie Bar Dist	Machine	Mold Price (RMB)	3D Code
50C	2316（CN）HRC42-46	H13 - Cu+C	A-level standard	Latent gate injection	1020KG	570mmX570mm	260T	120000	ER131004
